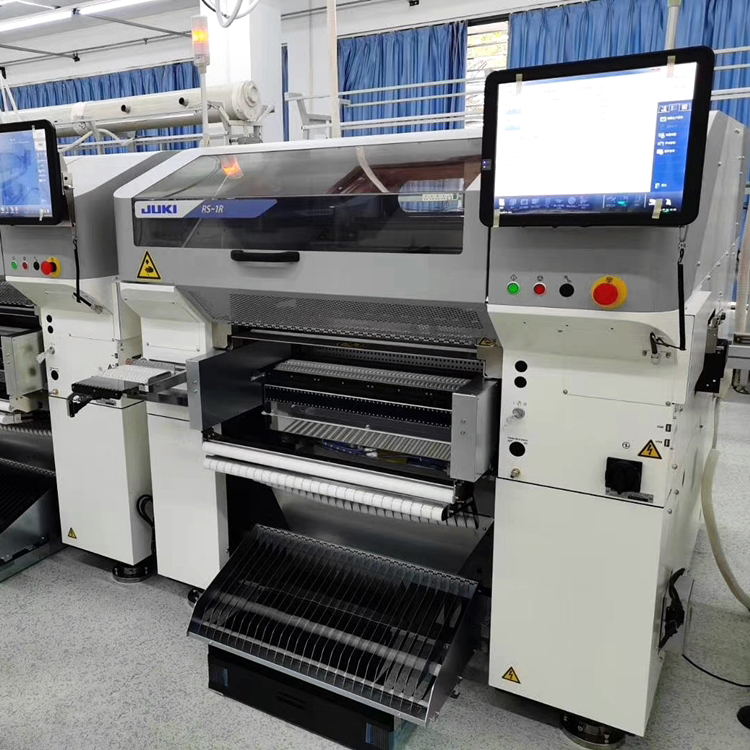

JUKI RS-1R SMT Chip Mounter

Model

JUKI RS-1R Pick and Place Machine

Conveyor Specification

standard

150mm conveyor extensions,
upstream and downstream

250mm conveyor extensions,
upstream and downstream

Boar Size

minimum

50*50mm

1 buffer

650*370mm(single clamping)

950*370mm(double clamping)

1,100*370mm(double clamping)

1,200*370mm (double clamping)

3 buffers

360×370mm

500*370mm

600*370mm

Component Height

25mm

Component Size

0201*1 ~74mm /150*50mm

Placement Speed

Optimum

47,000CPH

IPC9850

31,000CPH

Placement Accurancy

±35μm(Cpk≥1)

Feeder Inputs

max.112*2

Model		JUKI RS-1R Pick and Place Machine
Conveyor Specification		standard	150mm conveyor extensions, upstream and downstream	250mm conveyor extensions, upstream and downstream
Boar Size	minimum	50*50mm
	1 buffer	650*370mm(single clamping)
		950*370mm(double clamping)	1,100*370mm(double clamping)	1,200*370mm (double clamping)
	3 buffers	360×370mm	500*370mm	600*370mm
Component Height		25mm
Component Size		02011 ~74mm /15050mm
Placement Speed	Optimum	47,000CPH
	IPC9850	31,000CPH
Placement Accuracy		±35μm(Cpk≥1)
Feeder Inputs		max.112*2
