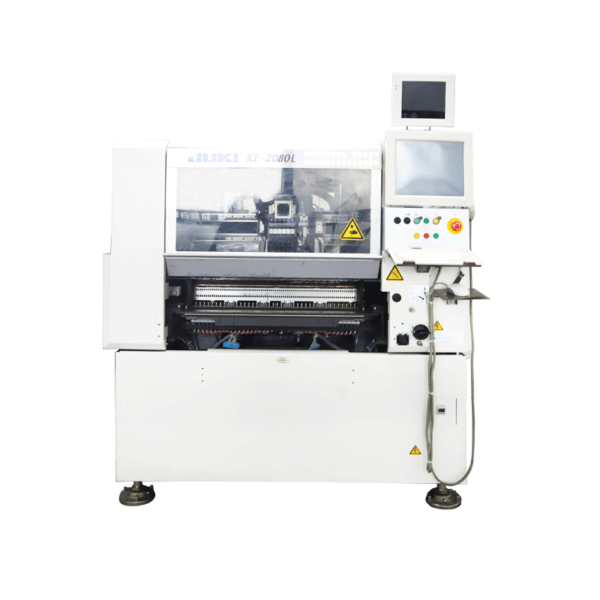

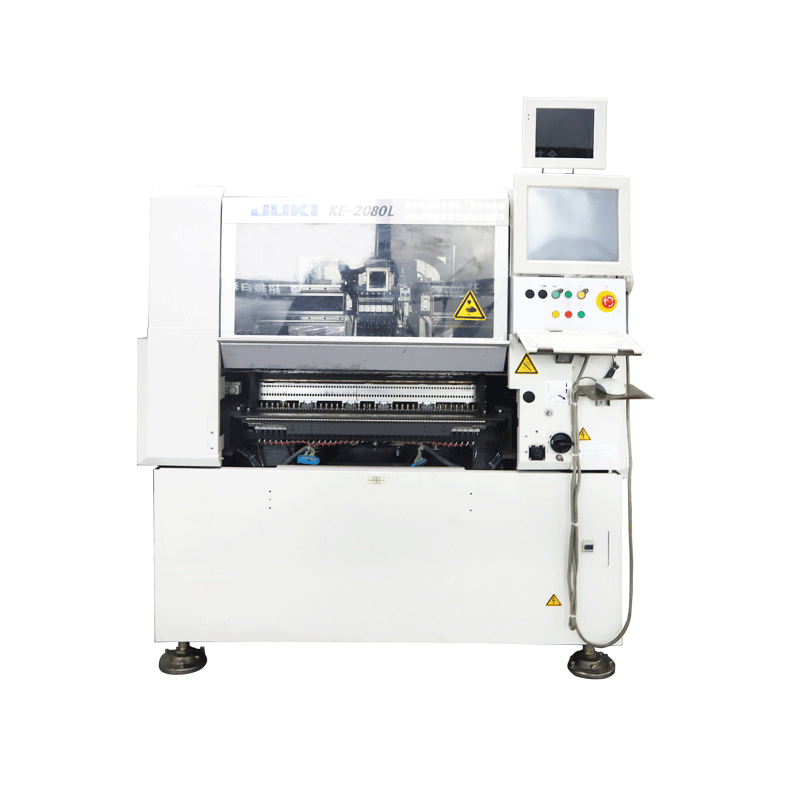

JUKI KE-2080L Chip Mounter
PCB Max Size: 410×360mm
Laser recognition:0402～□33.5mm
Conveyor Direction: Left to Right
Fixing Rail: Front Fixed
Components height: 12mm
Placement speed: 16,700CPH (IPC 9850)
Feeder inputs: Max. 80 on 8mm T/F※6

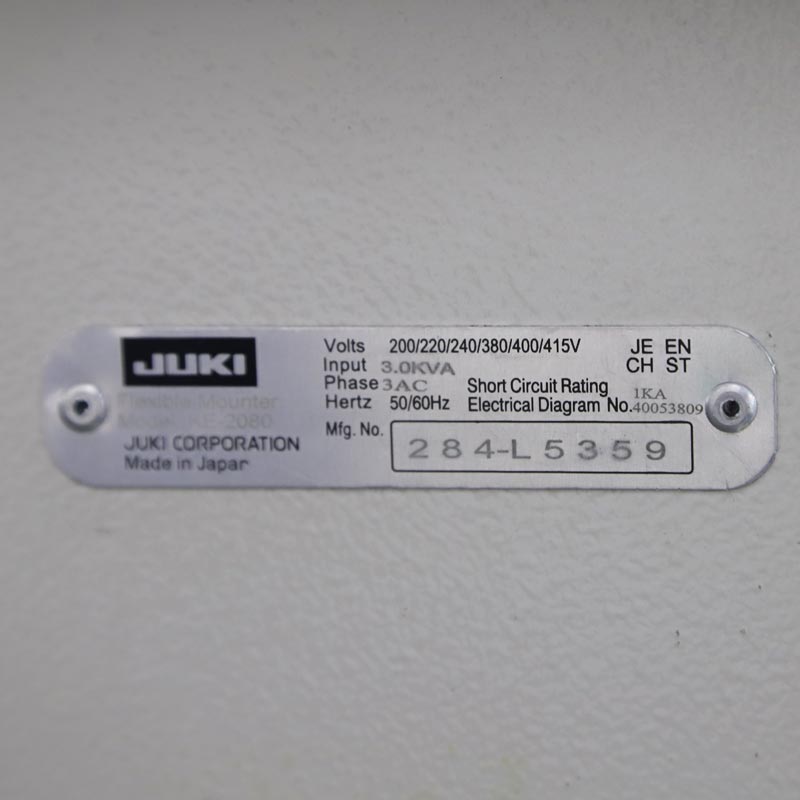

Power supply: 200 to 415 VAC, 3-phase
Apparent power: 3kVA
Operating air pressure: 0.5±0.05Mpa
Air consumption: 403L/min (Opt.:Vacuum Pump 50L/min)

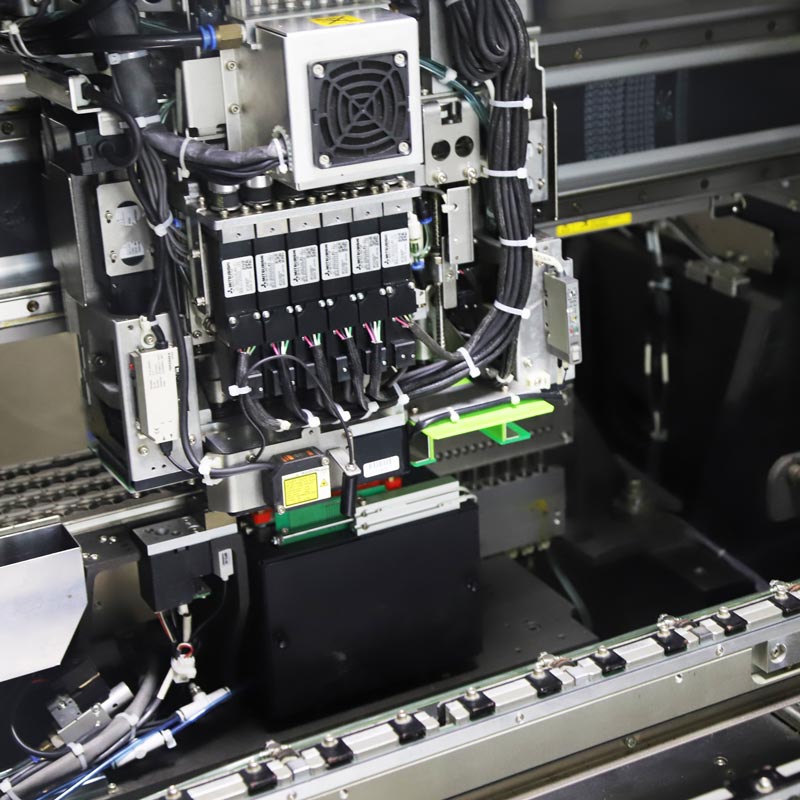

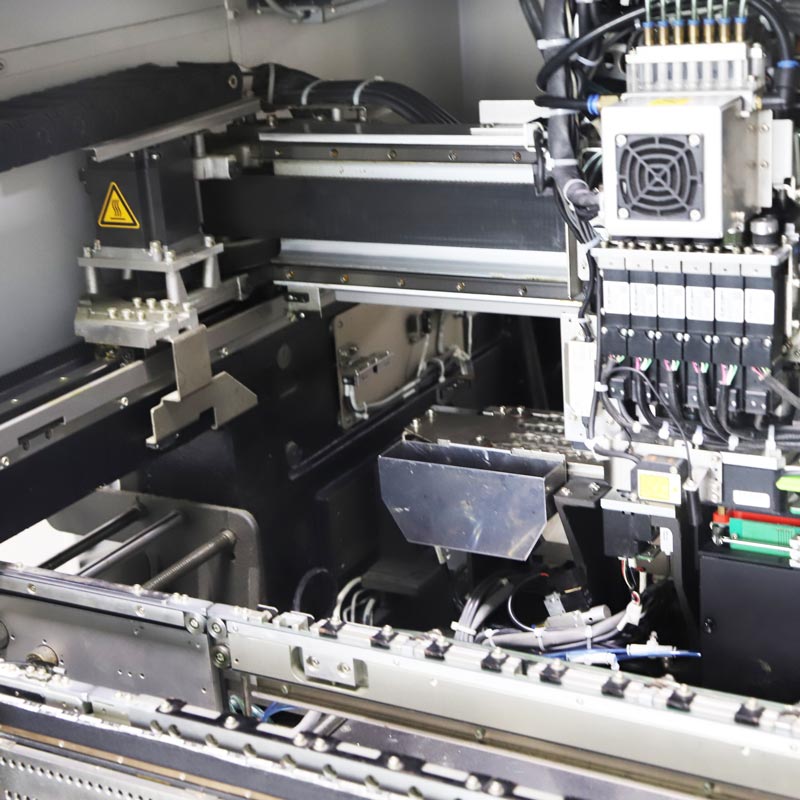

One multi-nozzle laser head (6 nozzles)
Machine dimensions: 1,500×1,500×1,455mm
Mass (approximately): 1,540kg
