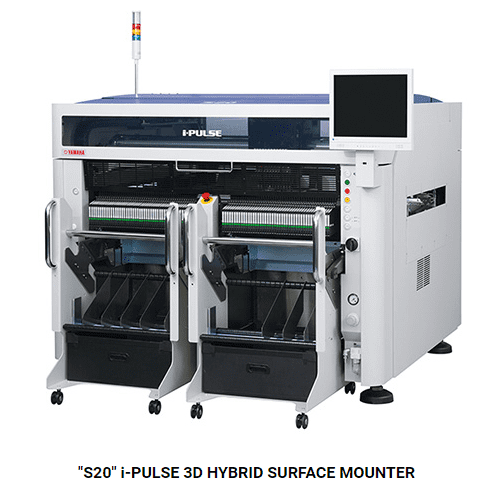

The Yamaha i-Pulse S20 fulfills the need for higher throughput in the flexible assembly and LED lighting sectors. The new high capacity head system addresses the need for faster cycle times and provides ultra-large PCB handling capabilities with higher placement rates.

The highly flexible S20 is available with the new head system incorporating 12 spindles with a wide component handling range. The S20 utilises the same fast change feeder bank and tray handler capabilities as the popular M20 and has a feeder capacity of up to 180 feeder positions. The optional camera will allow placement of parts down to 0.2 x 0.1 mm fulfilling the current demands on reduced component and ball sizes.

Features
High feeder capacity 180 lanes

Large board handling up to 1,455 x 510 mm as standard

Wide range component handling capability

Surface mounting is now possible on concave-convex, sloped and curved surfaces

Reduction in the number of components and man-hours required in assembly work

Laser board warp detection



Technical Details
Specifications



S20 Board size(with buffer unused) Min. L50 x W30mm to Max. L1,830 x W510mm (Standard L1,455)

Board size(with input or output buffer used) –

Board size(with input and output buffers used) Min. L50 x W30mm to Max. L540 x W510mm



Board thickness 0.4 – 4.8mm



Board flow direction Left to right (Std)



Board transfer speed Max 900mm/sec



Placement speed (12 heads + 2 theta) Opt. Cond. 0.08sec/CHIP (45,000CPH)



Placement accuracy A (μ+3σ) CHIP +/-0.040mm



Placement accuracy B (μ+3σ) IC +/-0.025mm



Placement angle +/-180 degrees



Z axis control / Theta axis control AC servo motor



Component height Max 30mm*1 (Pre-placed components: max 25mm)



Applicable components 0201 (mm) – 120x90mm, BGA, CSP, connector, etc. (Standard 01005 -)



Component package 8 – 56mm tape (F1/F2 Feeders), 8 – 88mm tape (F3 Electric Feeders), stick, tray



Drawback check Vacuum check and vision check



Screen language English, Chinese, Korean, Japanese



Board positioning Board grip unit, front reference, auto conveyor width adjustment



Component types Max 180 types (8mm tape), 45 lanes x 4



Transfer height 900 +/- 20mm



Machine dimensions, weight L1750xD1750xH1420mm, Approx. 1,500kg



Specifications and appearance are subject to change without prior notice. Board thickness + Component height = Max 30mm.
