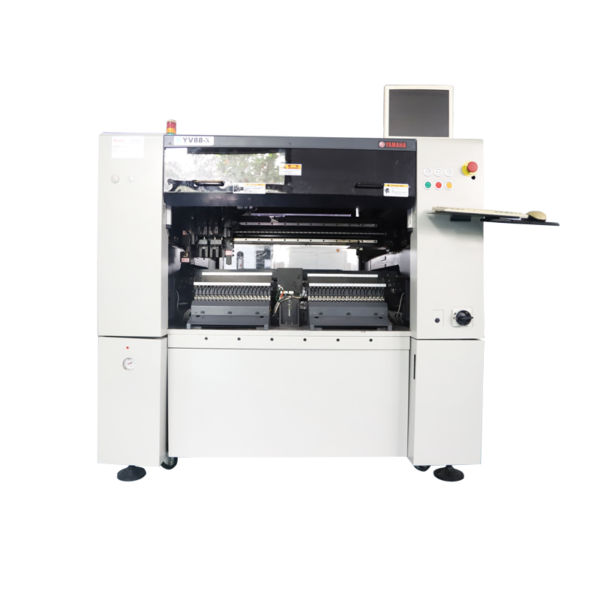

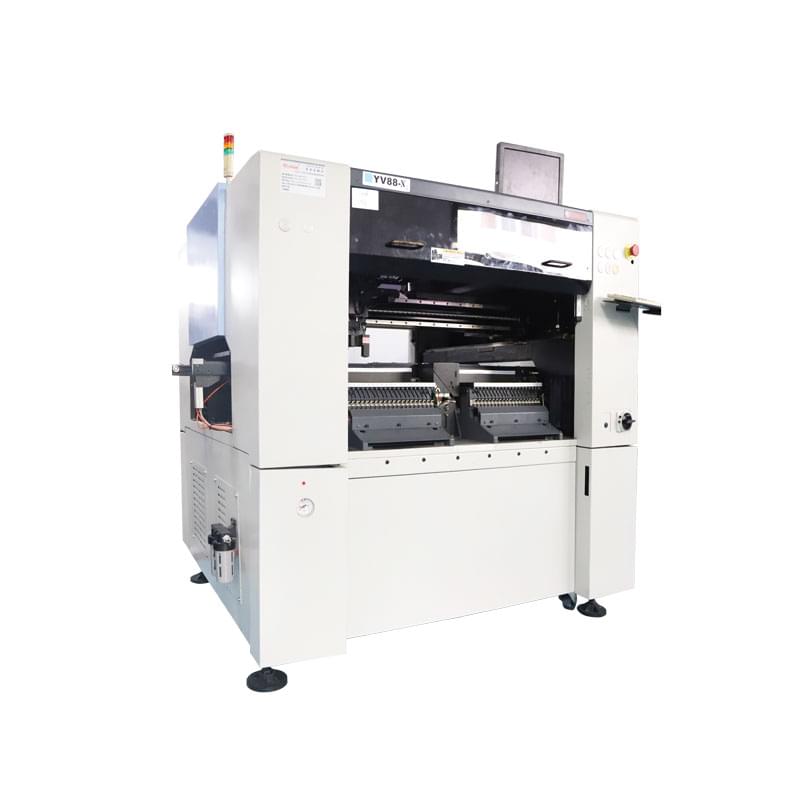

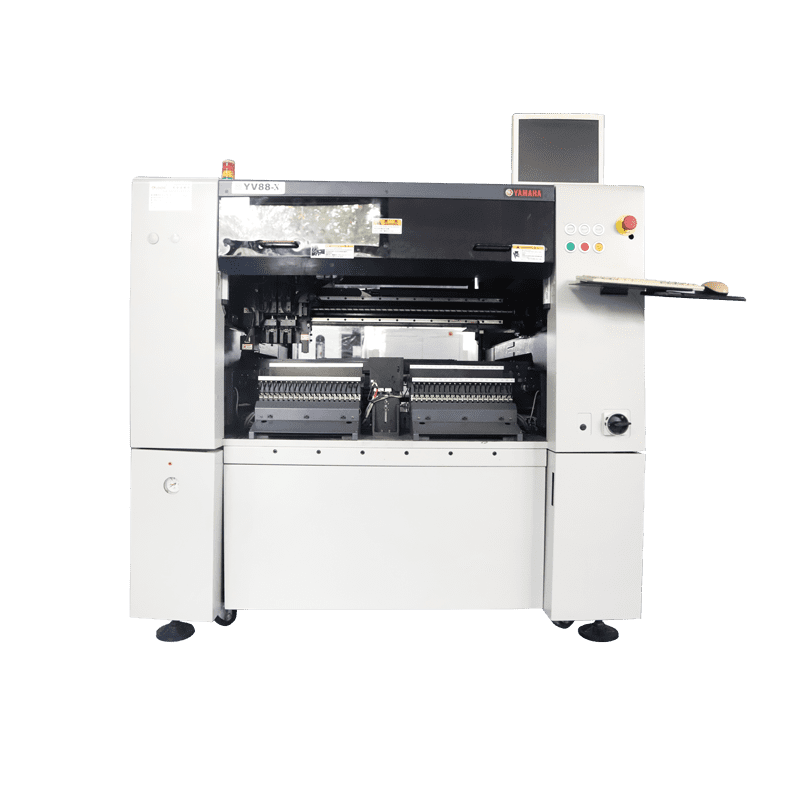

YAMAHA YV88X SMD MACHINE is a fast speed smt machine, Which has 2nos heads total 16nos nozzles, its double speed compare with yv100x, but it couldn’t install 1200mm kit on this machine, So if your PCB size not too long, then can choose yv88x machine
Chip speed: 0.45sec / chip; 1.5sec / QFP
Patch accuracy: Within +/- 0.08mm / chip; +/- 0.04mm / QFP
SMD component range: 1005 ~ QFP`SOP`SOJ`PLCC (mouth 30mm).
Loading material: 94 kinds of belt; tray 50 kinds.
Shelf configuration: support (mixed)
Dimensions / Weight: L1,413xW1,258xH1,810mm / about 1,000kg
