AIMEX III

AIMEX III Specifications

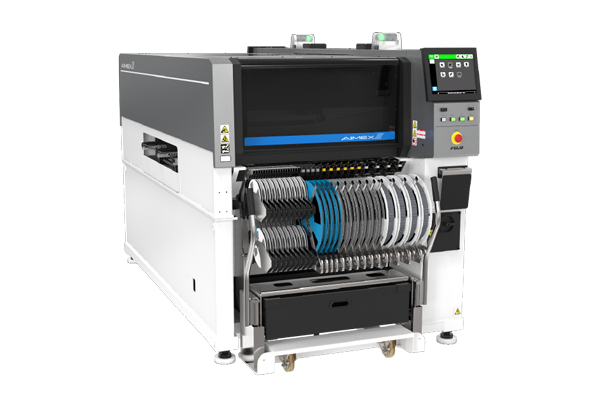

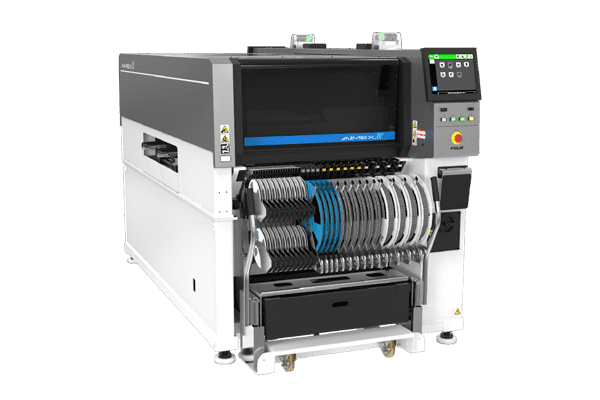

Machine AIMEX III
Feeder slot quantity 130
Panel size
(L x W)
Single conveyor 48 x 48 to 1,068 x 710 mm *1
Double
conveyor
Single conveyance 48 x 48 to 1,068 x 610 mm
Dual conveyance 48 x 48 to 1,068 x 330 mm
Heads H24S, DX, V12, H08M(Q), H02F, H01, OF
Throughput 1 robot 2 robots
H24S Standard mode 35,000 cph (H24S x 1) 70,000 cph (H24S x 2)
Productivity priority
mode 40,000 cph (H24S x 1) 80,000 cph (H24S x 2)
DX 27,000 cph (12 nozzles)
12,000 cph (4 nozzles)
5,800 cph (1 nozzle)
54,000 cph (12 nozzles)
24,000 cph (4 nozzles)
11,600 cph (1 nozzle)
V12 26,000 cph (V12 x 1) 52,000 cph (V12 x 2)
H08M Standard mode 13,000 cph (H08M x 1) 26,000 cph (H08M x 2)
Productivity priority
mode 14,000 cph (H08M x 1) 28,000 cph (H08M x 2)
Placing
accuracy
H24S ±0.025 mm Cpk ≥ 1.00
V12 ±0.038 mm Cpk ≥ 1.00
H08M ±0.040 mm Cpk ≥ 1.00
H02F ±0.025 mm Cpk ≥ 1.00
Part supply units Tape feeders, stick feeders, tray units, others
Power source 3-phase 200 to 230 V ± 10 % (50/60 Hz)
Air 0.5 MPa (ANR)
