JUKI Chip mounter – KE2070L
Max PCB Size: 410 x 360 mm
Laser recognition:0402 (01005)～□33.5mm
Conveyor Direction: Left to Right
Fixing Rail: Front Fixed
Feeder Quantity: 20 pcs 8mm
Placement speed: 16,000CPH (IPC 9850)
Feeder inputs: Max. 80 on 8mm T/F※6
Power supply: 200 to 415 VAC, 3-phase
Apparent power: 3kVA
Operating air pressure: 0.5±0.05Mpa
Air consumption: 345L/min (Opt.:Vacuum Pump 50L/min)
One multi-nozzle laser head (6 nozzles)
Machine dimensions: 1,500×1,500×1,455mm
Mass (approximately): 1,530kg
JUKI, SMT Machines

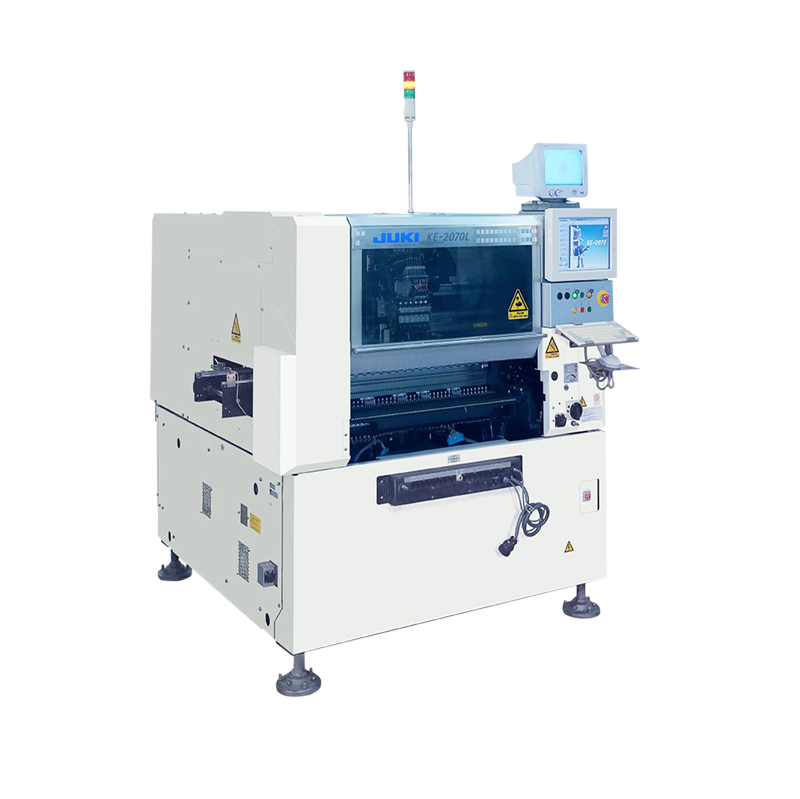

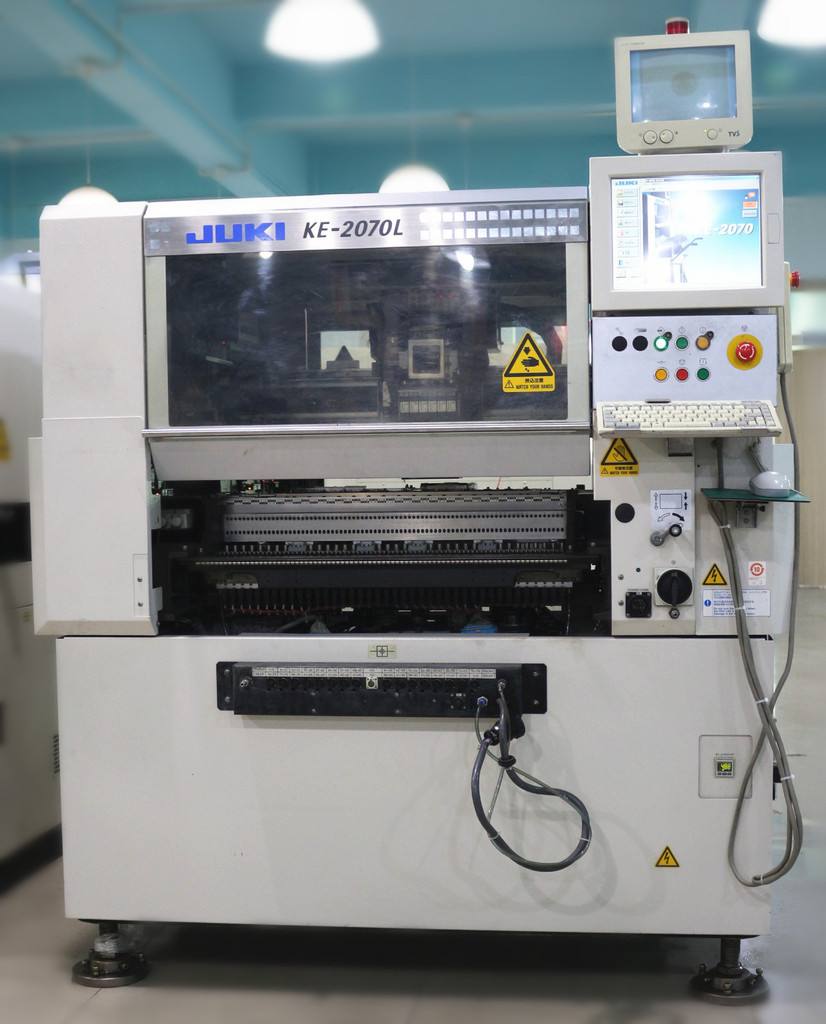

JUKI KE2070L Chip Mounting Machine With 6 Standard Patch Heads
JUKI KE2070L SMT Chip Mounter equipped with 6 standard patch heads. This SMT machine has a high-precision Image recognition camera designed for small IC components. JUKI 2070L Chip Component Mounting Machine is an upgraded version of the JUKI 2050 SMT Mounter.
