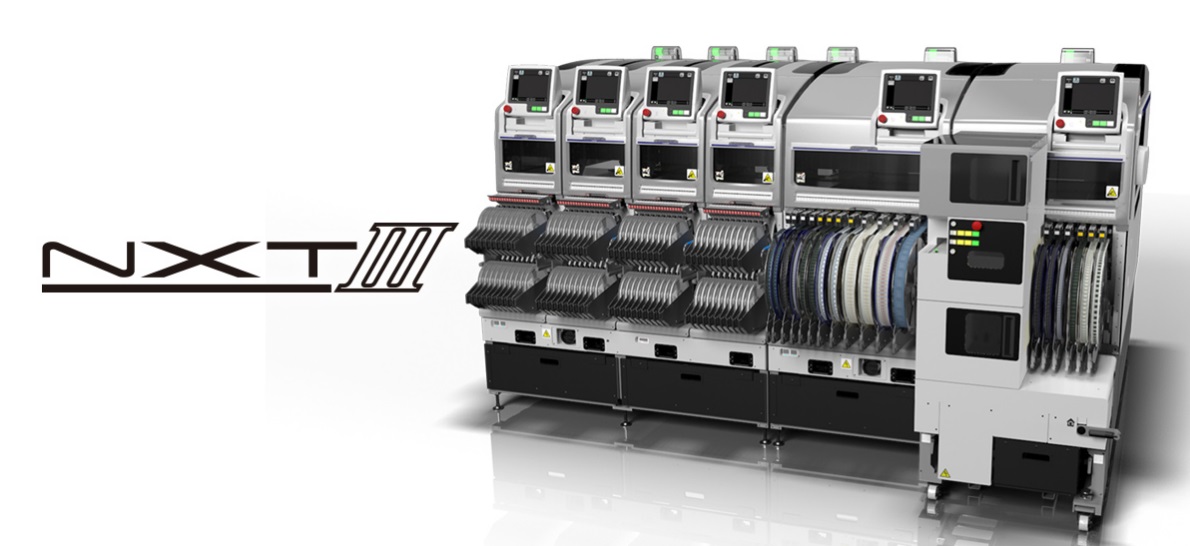

NXT III

machine type:
NXT-M3
PCB size:
Minimum: 48mmx48mm
Maximum: 510mmx534mm

(Single handling track)
Patch speed:
H12HS: 22,500; H08: 10,500; H04: 6,500; H01: 4,200
Patch accuracy:
H12S / H08 / H04: 0.05mm (3sigma) cpk≥1.00
Patch range:
H12S: 0402 ~ 7.5×7.5mm high: MAX: 3.0mm
H08: 0402 ~ 12x12mm high: MAX: 6.5mm
H04: 1608 ~ 38x38mm high: MAX: 13mm
H01 / H02 / OF: 1608 ~ 74x74mm (32X180mm) High: MAX: 25.4mm
G04: 0402 ~ 15.0mmx15.0mm high: MAX 6.5mm

Carrying rack:
MAX: 20 kinds / module (8mm tape conversion)
using electric:
3P / 200V / 10KVA
Air flow:
0.5 MPa (5 kgf / cm2), 10 NI / min.
Dimensions:
2M II Base: 740 (L) x 1934 (W)
4M II Base: 1390 (L) x 1934 (W)
H: 1474 mm (M3 II) 1476 mm (M6 II / M6 IISP)
Machine weight:
1,350kg

By loading the newly developed H24G head on the NXT III, 008004″ (0.25 x 0.125 mm)

components can be supported without any change to the specifications of the machine

(speed: 35,000 cph, accuracy: ±25 μm). The Intelligent Part Sensor (IPS), which

checks the orientation of parts on the nozzle and ensures that the part

does not remain on the nozzle after placement, is standard on the H24G placement head.

As part sizes get increasingly smaller and more delicate, lower impact forces during

placement are required. The 008004″ (0.25 x 0.125 mm) part nozzles developed

for the H24G head achieve an impact force of no greater than 0.5 N without any reduction in operation speed.

Orders for the H24G head and 008004″ (0.25 x 0.125 mm) part nozzles will start to be taken from January 2015.

Fuji is planning to demonstrate the H24G head and 008004″ (0.25 x 0.125 mm) part nozzles

Please drop by the booth to see some 008004″ (0.25 x 0.125 mm)

components being placed at high speed.
