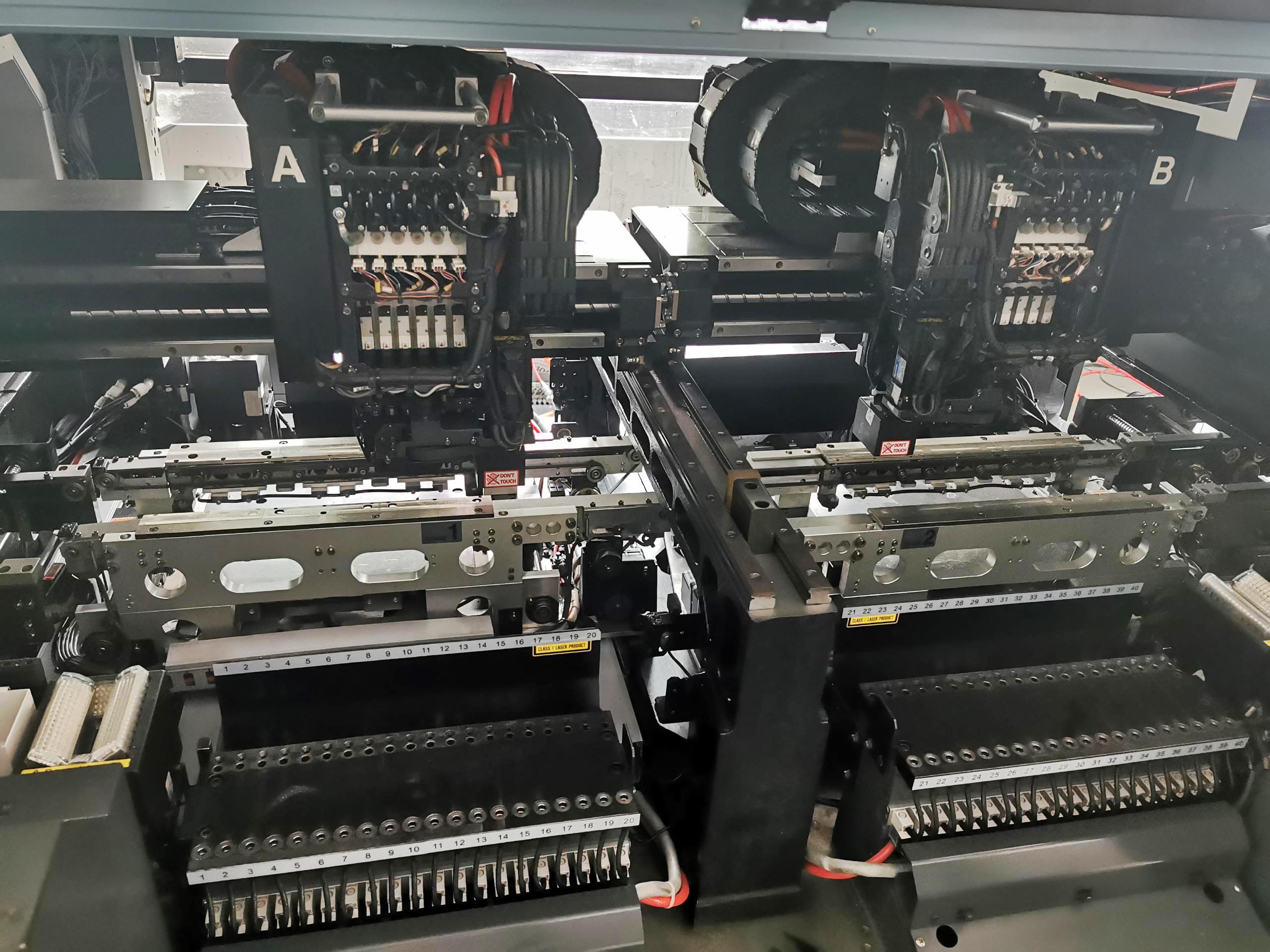

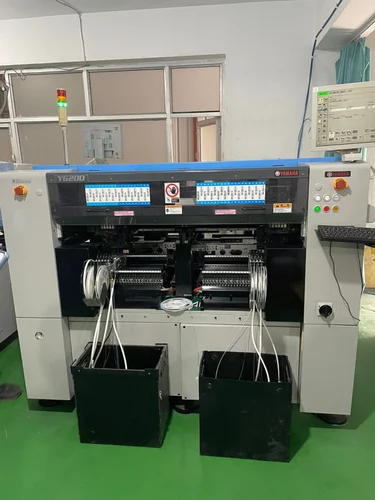

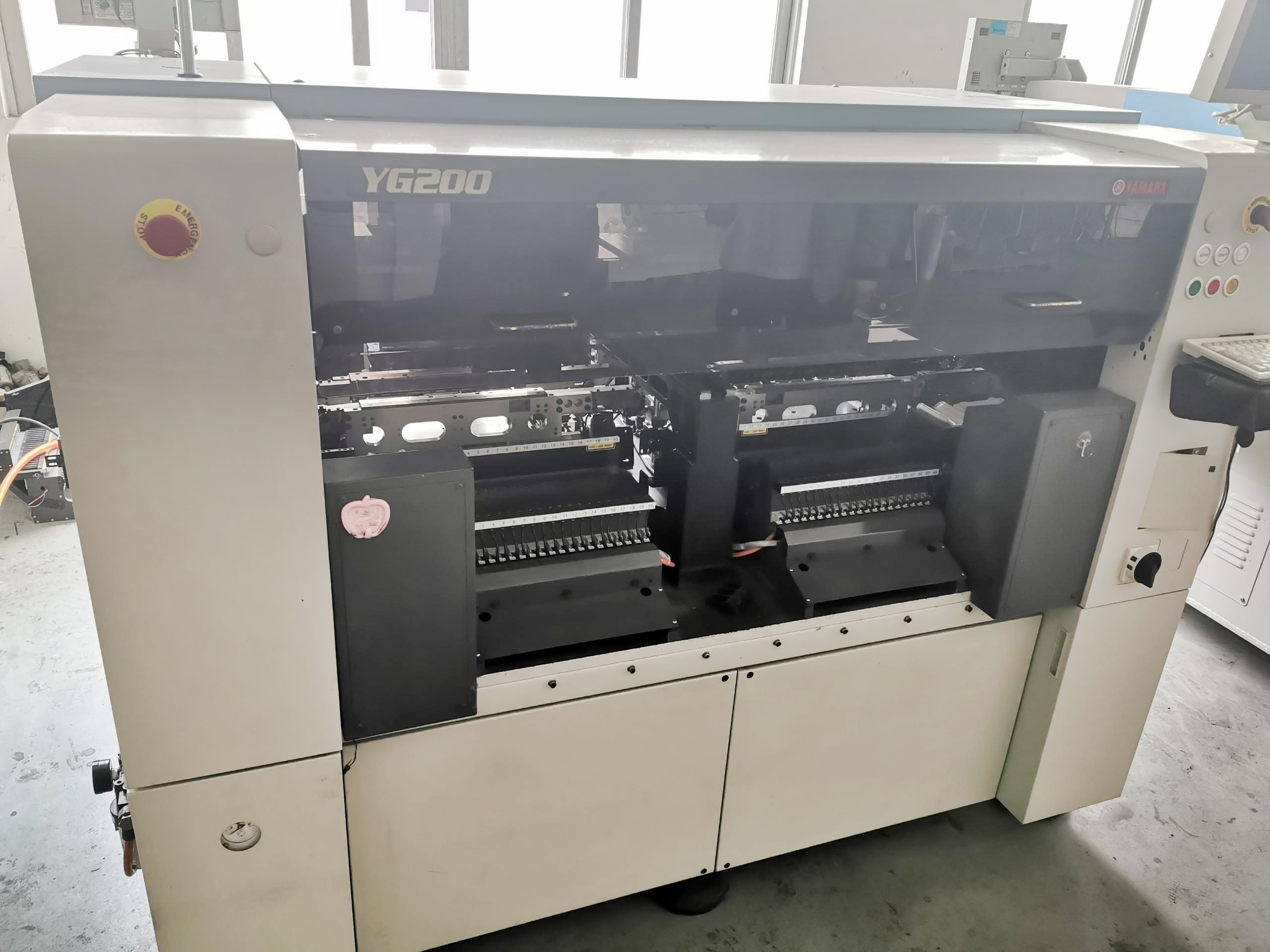

Yamaha YG200 pick and place machine

High Speed Smt Pick and Place Machine for LED

Specifications:

High speed chip shooter YG200 (Model KGT-100)

Applicable PCB: L330×W250 mm to L50×W50 mm

Through-put (Optimum): 45,000 CPH, 0.08 sec/CHIP equivalent

Mounting accuracy: Yamaha’s standard components

Absolute accuracy (μ+3σ): +/-0.05 mm/CHIP, repeatability 3σ +/-0.03 mm/CHIP

Applicable components: 0402 (Metric base to 14* mm components

Height of components which can be mounted: 6.5 mm or less

Allowable height on PCB surface before transport 6.5 mm or less

Number of component types: 80 types Max, 8 mm tape reel conversion)

Power supply 3-phase AC 200/208/220/240/380/400/416 V +/-10% 50/60 Hz

Air supply source 0.55 MPa or more, in clean, dry states

External dimension, 950×W1, 408 End of cover)×H1, 450mm cover top) L1, 950×W1, 608 End of guide for feeder carriage)×H1, 450 mm cover top)

Weight approx. 2080 kg
