Features
Printing quality similar to flag ship models, compatible with large circuit boards and a wide variety of stencil frames.
Built-in features from high-end machine models deliver high print accuracy and quality!
Multiple functions and extreme versatility all wrapped into 1 compact unit!
Support for Yamaha SMT production line network, delivers highly efficient production.
Specifications

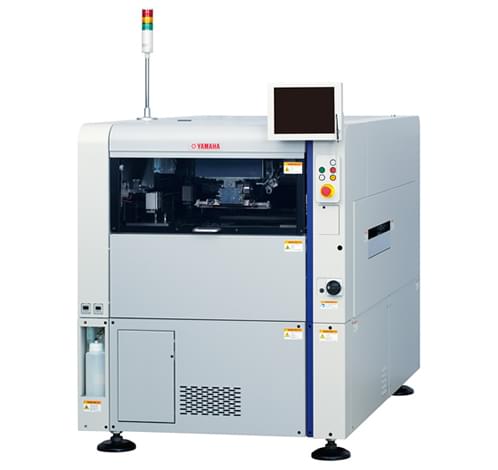

| Model | YCP10 |
| Applicable PCB | L510 x W460mm to L50 x W50mm |
| Printing head | 3S head (3S: swing single squeegee) Double squeegee head (option) |
| Printing accuracy | Positioning repeatability (6σ) : +/- 0.010 mm |
| Cycle time | 13.5 sec (Standard printing : under optimum condition, including board transfer time and printing time) |
| Applicable stencil size | L750 x W750mm, L736 x W736mm, L750 x W650mm, L650 x W550mm, L600 x W550mm (option), L550 x W650mm (option), L584 x W584mm (option) |
| Power supply | Single-phase AC 200/208/220/230 V +/- 20 V 50/60 Hz |
| Air supply source | 0.45MPa or more, in clean, dry state |
| External dimension | L1,130 x W1,760 x H1,370mm |
| Weight | Approx. 1,100kg |
