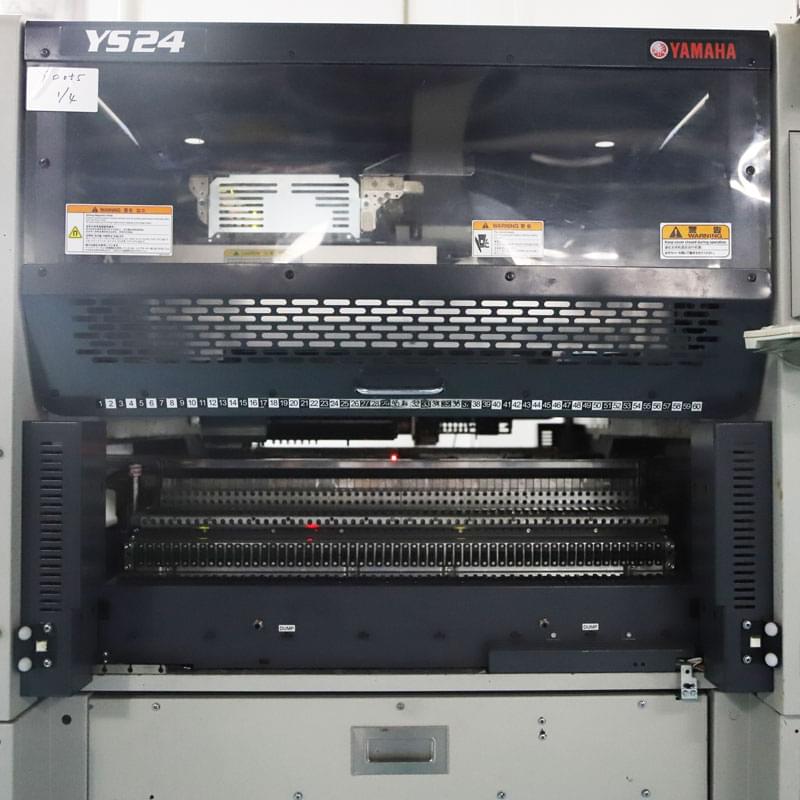

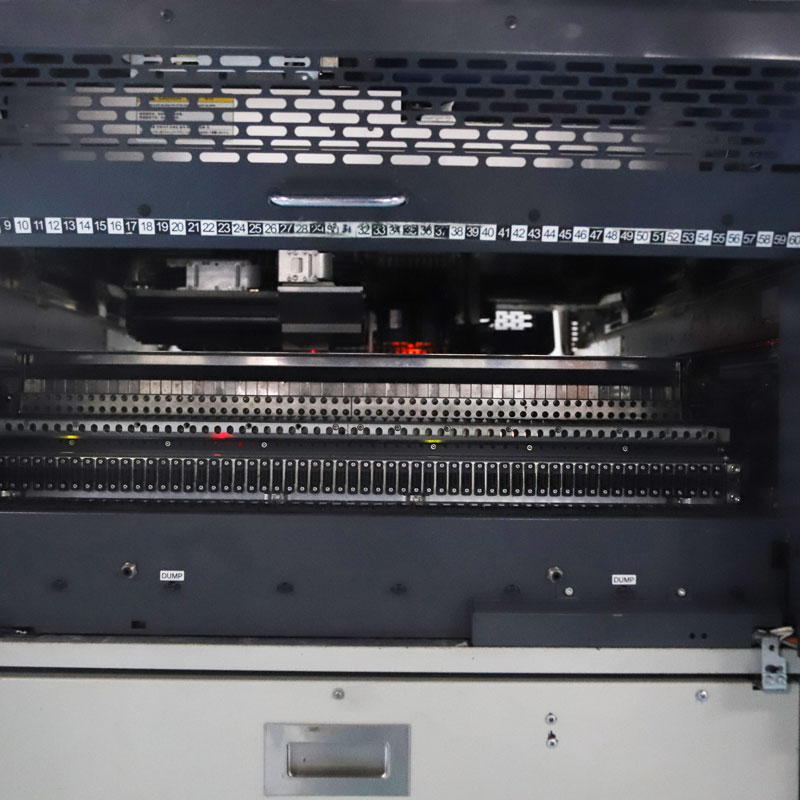

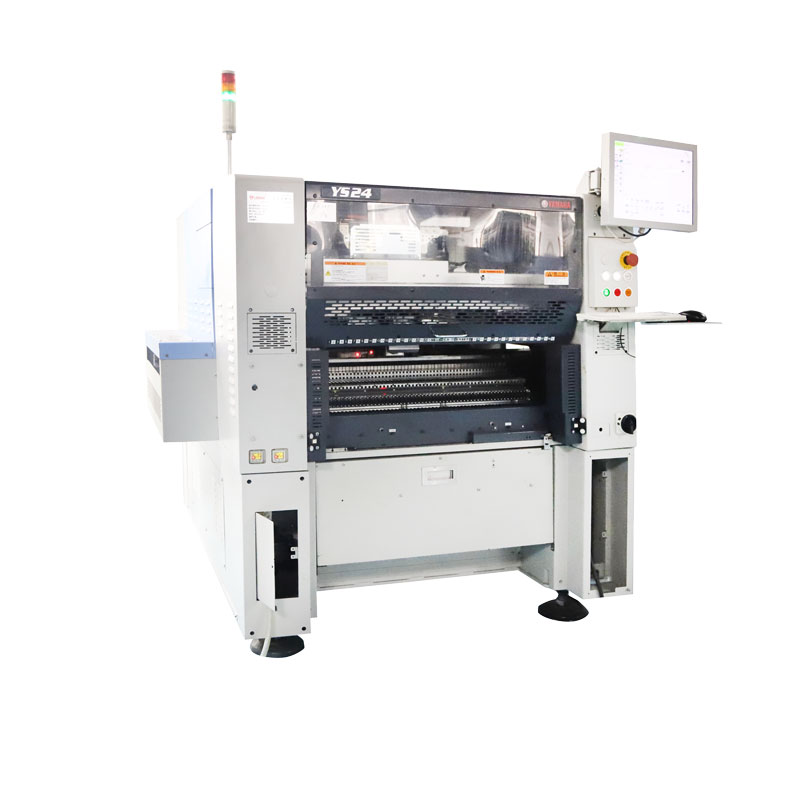

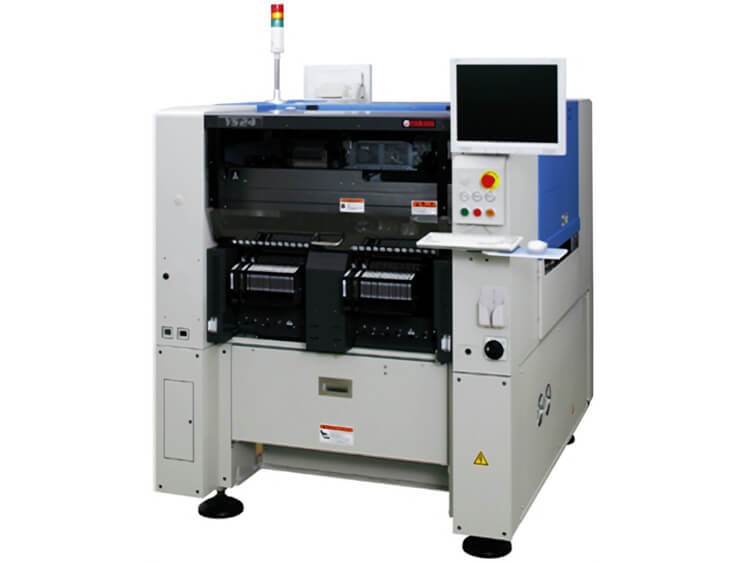

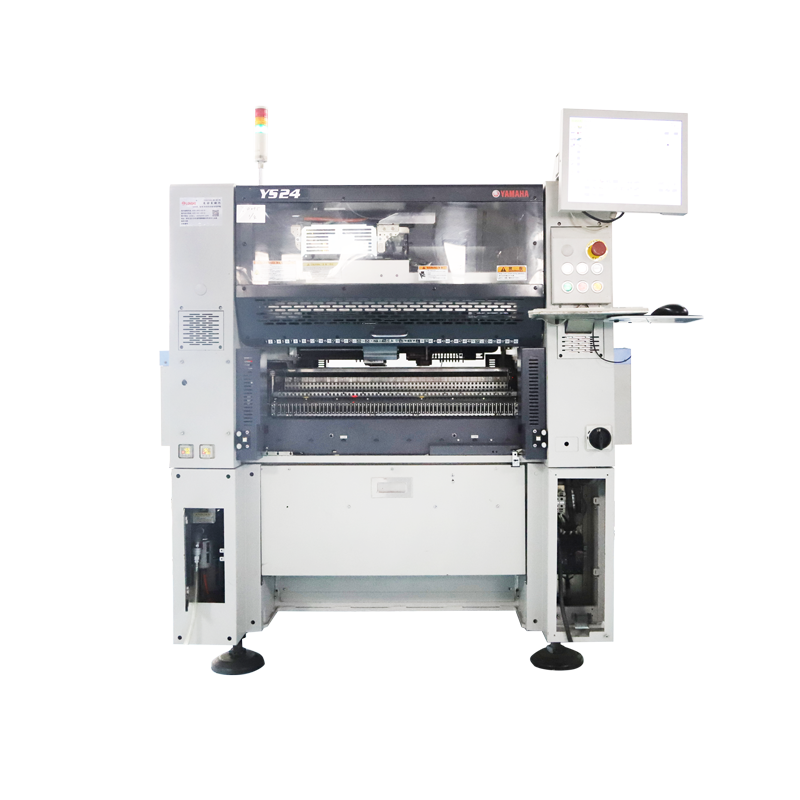

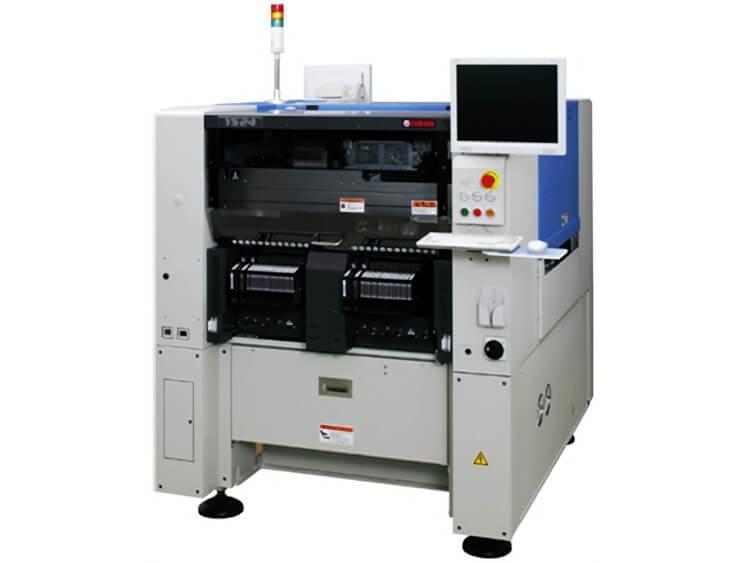

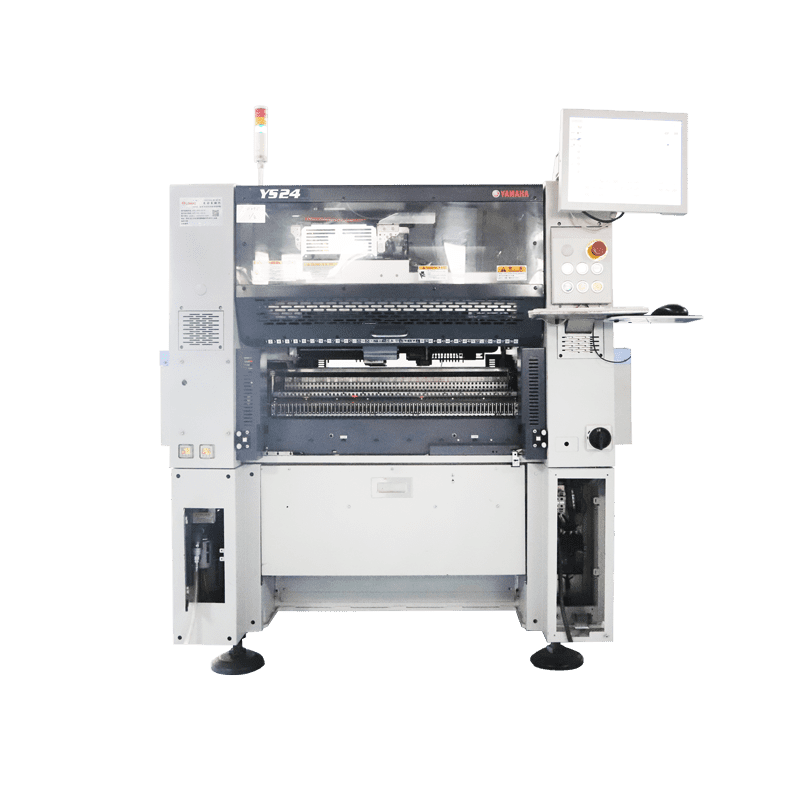

YAMAHA YS24 Pick and Place Machine
| Model | YAMAHA YS24 |
| Applicable PCB | L50xW50mm –to L700xW460mm |
| Mounting accuracy | +/-0.05mm ( + 3sigma), +/-0.03mm (3sigma) |
| Speed | 72,000CPH (0.05 sec./CHIP: Optimum conditions established by Yamaha Motor) |
| Applicable components | 0402 to 32x32mm MAX (Height 6.5mm or less) |
| Component Types | 120 types (Max./8mm wide tape reel conversion) |
| Power supply | Three phase AC 200/208/220/240/380/400/416 V +/-10% |
| Air supply source | 0.45MPa |
| External dimension | L1,254x W1,687x H1,445mm (Excluding protrusions) |
| Weight | Approx. 1,700kg |
